24dBi High Gain 1710-2700MHz Outdoor Directional Antenna DCS WCDMA LTE Parabolic Grid Antenna

Short Description:

24dBi High Gain 1710-2700MHz Outdoor Directional Antenna DCS WCDMA LTE Parabolic Grid Antenna  TECHNICAL SPECIFICATION Electrical Specifications Frequency rang-MHz 1710-2700 Bandwidth -MHz 960 Gain -dBi 24 beam width -° H:14   V:10 Front to Back Ratio-dB ≧30 VSWR ≤1.6 Input Impedance-Ω 50 Polarization Vertical and Horizonta Max power -W 100 Lightning protection DC ground Mechanical Specification Size -mm 0.6*0.9 Antenna weight-kg 3.2 Working Temperature -°c -...


  • Brand: Kingtone/JIMTOM
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Warranty: 12months
  • Antenna Type: Grid Antenna
  • Outdoor Antenna: Parabolic Grid Antenna
  • Working Frequency : 1710-2700MHz
  • Gain : 24dBi
  • Application: DCS WCDMA LTE
  • Product Detail

    Product Tags

    24dBi High Gain 1710-2700MHz Outdoor Directional Antenna DCS WCDMA LTE Parabolic Grid Antenna

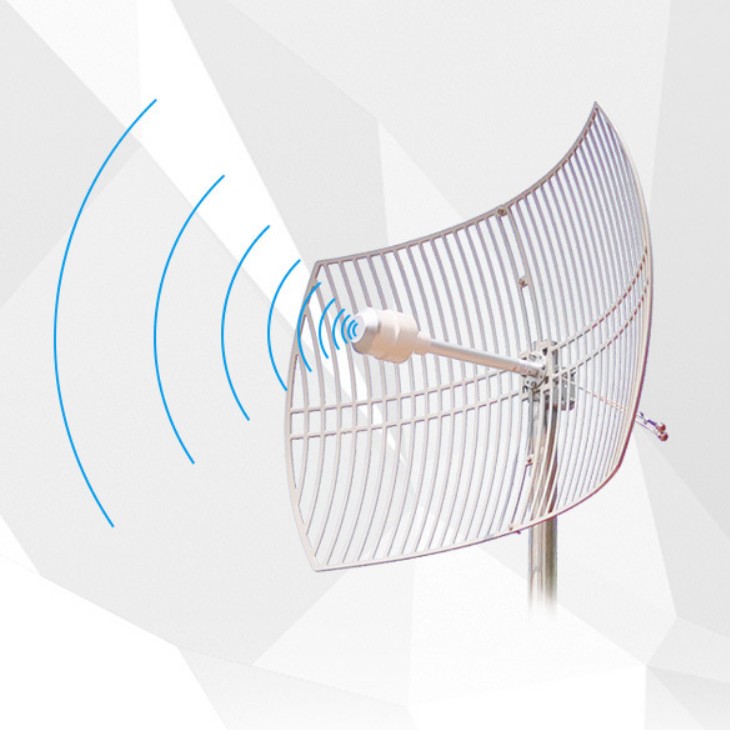

    1700-2700MHz Grid Antenna.1

    TECHNICAL SPECIFICATION

    Electrical Specifications
    Frequency rang-MHz 1710-2700
    Bandwidth -MHz 960
    Gain -dBi 24
    beam width -° H:14   V:10
    Front to Back Ratio-dB ≧30
    VSWR ≤1.6
    Input Impedance-Ω 50
    Polarization Vertical and Horizonta
    Max power -W 100
    Lightning protection DC ground
    Mechanical Specification
    Size -mm 0.6*0.9
    Antenna weight-kg 3.2
    Working Temperature -°c -40~60
    Rod diameter-mm Φ50~70

    Grid Antenna.3

    Grid Antenna.3 (2)

    QQ图片20201205150740
