Dummy Load is designed to absorb all the incident power with very little reflection,effectively terminating the line or port in its characteristic impedance.Termination are used in a wide variety of measurement systems;any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accutate measurement.Terminations are also used in devices such as derectional couplers and isolators.
With power ratings from 2 to 300 watts fitted with N ro DIN-Male or female connectors.
- Mainfeature
- 1. Maximum Frequency:3.0 GHz
2. Impedance:50 Ohm
3. Power: 100W
4. Package includes: 1pcs N male Terminal termination Dummy Load DC 3.0GHz
- Application&scenarios
-
- Specification
-
Model
KT-100Y200-30-01
Power
100W
Frequency（GHz）
DC～3G
VSWR
≤1.2
Connector
N-J
Color
Black

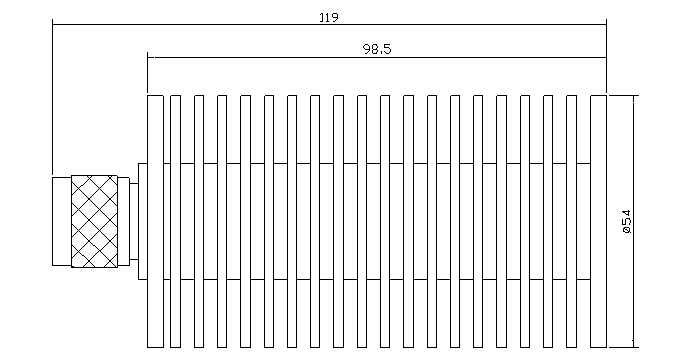

Size
Φ54*98.5 mm
- Parts/Warranty
-
