Good Quality 10/12dBi 2*SMA-Male 600-2700mhz Omni Antenna GSM/GPRS/2.4G/3G/4G/5G Outdoor Mimo Antenna

Short Description:

Good Quality 10/12dBi 2*SMA-Male 600-2700mhz Omni Antenna GSM/GPRS/2.4G/3G/4G/5G Outdoor Mimo Antenna 【Premium materials &Outdoor weather resistance】   Durable PVC material to achieve better signal reliability under all kinds of inclement weather anti sunburn, waterproof, dampproof,anti-freezing, windproof,etc Description External Cell Omnidirectional Antenna with N Famale connector. Frequency Range: 698-2500MHz; Support 800-900 MHz/1.7 GHz/1.8 GHz/1.9 GHz/2.1GHz/2.4GHz Alumin...


  • Brand: Kingtone/JIMTOM
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Warranty: 12months
  • Antenna Type: Mimo Antenna
  • Application: Outdoor
  • Network: GSM/GPRS/2.4G/3G/4G/5G
  • Frequency: 698-960MHz/1710-2700MHz
  • Product Detail

    Product Tags

    Good Quality 10/12dBi 2*SMA-Male 600-2700mhz Omni Antenna GSM/GPRS/2.4G/3G/4G/5G Outdoor Mimo Antenna

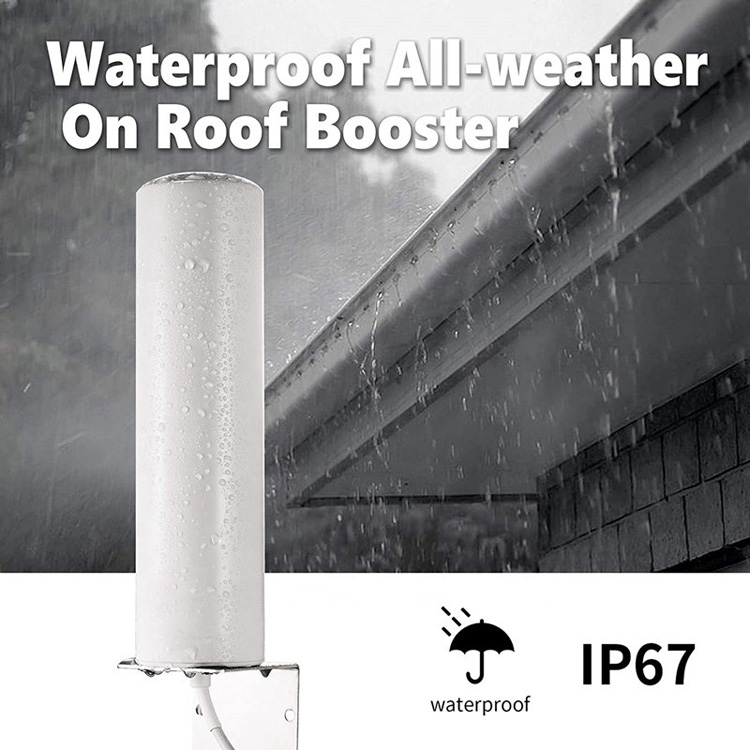

    【Premium materials &Outdoor weather resistance】



    Durable PVC material to achieve better signal reliability under all kinds of inclement weather anti sunburn, waterproof, dampproof,anti-freezing, windproof,etc

    mimo-antenna.4

    Description
    External Cell Omnidirectional Antenna with N Famale connector.
    Frequency Range: 698-2500MHz; Support 800-900 MHz/1.7 GHz/1.8 GHz/1.9 GHz/2.1GHz/2.4GHz
    Aluminum Construction, Light Weight, all Weather Operation
    Easy and quick to install. Helps you stay connected in your home
    Note: 1.Please note about the connector type before purchasing. 2.This is a outdoor antenna for signal repeater. You need to use it with signal repeater or other signal booster device.



    mimo-antenna.1jpg

    mimo-antenna.3

    How to install Step

    Step 1: Find a position where could receive great signal,mostly a higher position, like at rooftop. Install outdoor antenna at it and make it toward the base station.



    Note: the outdoor antenna shall receive good signal, otherwise the repeater could not work.



    Step 2: Connect outdoor antenna to booster at BTS connector with the cable.



    Step 3: Connect indoor antenna to booster at MS connector. And it would be better to install it at a height of 2 meters.



    Note: The two antennas shall be totally separated by a brick wall with a distance of at least 10 meters. Otherwise, the signal would intervene to each other, showing full
    of signal on display, but actually the booster doesn’t work properly.



    Step4: Plug in power supply and done!

    mimo-antenna.6

    mimo-antenna.5

    TECHNICAL SPECIFICATION:

    Electrical Specifications
    Frequency Range 698-960MHz/1710-2700MHz
    Gain 12dBi
    Connector SMA-Male
    Cable RG58
    Cable Length 2*5m
    VSWR ≤1.5
    Input Impedance 50Ω
    Polarization Vertical
    Antenna Size 63.5*420mm
    Antenna Weight ≤1.5kg
    Working Temperature -4060°c
    Application GSM/GPRS/2.4G/3G/4G/5G etc. System
