Kingtone Low Loss RF Multicoupler UHF VHF TETRA 136-520 MHz 2/4/6/8 way TX Combiner/Multiplexer for IBS DAS is a device that selects between several input signals and forwards it to a signal output line. The different individual system can share the same coverage solution. It avoided the repeated consumption of indoor building coverage network an reduced the cost. The combiner is in line with the isolation requirement of front-end equipment, and prevent the signal interaction with multi-system and improve user’s experience.
Kingtone RF Multiplexer or combiner is passive RF / microwave components used for combining microwave signals. TheUHF TX Combiners is used to combine TX signals to one port.
Main Features
- High TX ports isolation
- Low insertion loss
- High Input Power, Max Input power 50W.

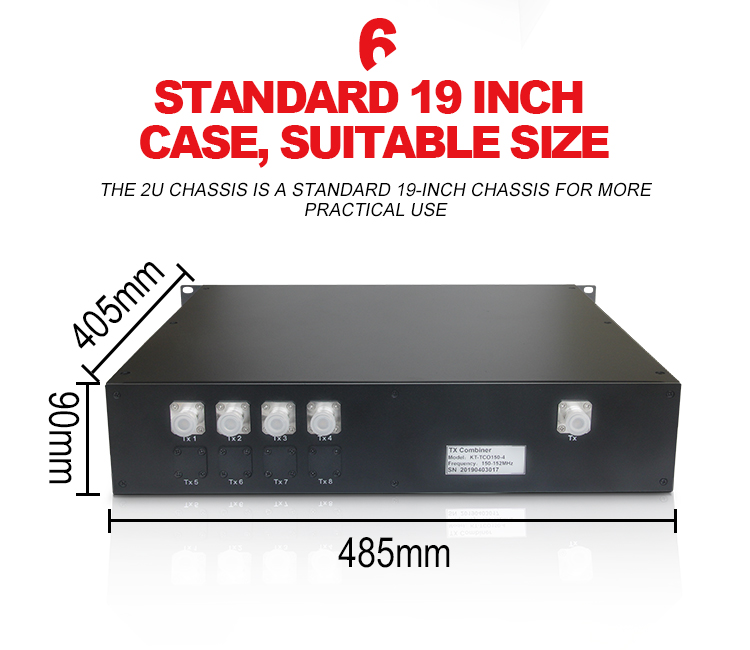

- 2U cabinet chassis for Standard 19 inch cabinet
Technical specifications | |
Model |
KT-FHP400-2 |
Frequency Range (MHz) |
420-470 |
Number of ports |
2,4 |
Working Bandwidth (MHz) |
30 |
Insertion Loss (dB) |
≤4 |
In-band Ripple (dB) |
≤1 |
Isolation (dB) |
≥20 |
Carrying Power (W) |
15 |
VSWR |
≤1.5 |
Impedance(Ω) |
50 |
Connector |
NK |
Operation Temperature |
-20~55℃ |
Storage Temperature |
-40~80℃ |
Relative humidity |
≤95% |
Mechanical specifications | |
Dimension |
485*405*45 mm |
Package |
573*503*145 mm |
Weight |
7kg |
-
