EXTEND THE RANGE OF YOUR RADIO!!
The Kingtone XR-1000 UHF Repeater expands the coverage of your radio communications without complications! Compact, durable and easy to install, the XR-1000 is designed to operate indoors or outdoors for uninterrupted radio communications across your entire operation.
The Kingtone XR-1000 supports both conventional and trunking systems for voice. It easily mounts on a pole or wall, so you can place it where you need to eliminate dead zones and cover remote areas of your work environment. It’s also allowing installation on a campus, golf course, parking lot or almost anywhere indoors.
Installation:
1. Please place the repeater in a water-proof and open area indoors or outdoors, where the antenna can be completely pulled out
2. Install the antenna, fold and stretch it; The antenna must be oriented upwards during installation
3. Plug in the power adapter and flash the red power supply (please use the standard power adapter).
4. Indicator Instruction
GREEN Light: light up when the repeater receiving signal;
RED Light: light up when the repeater transmitting signal;
In standby mode: the GREEN light & RED light aren’t on ;
5, Factory default configured frequencies TX:460.125MHZ, RX: 429.125MHZ, CTCSS 100;=> You just need setup your radio by correct Tx.:429.125MHZ & RX:460.125MHZ,CTCSS 100, then it will work.
If you want to customize TX and RX frequency, please contact us!
Technical Specification:
| Receiving Frequency (RX) | 430.000MHz ± 2MHz |
| Transmitting Frequency (TX) | 460.000MHz ± 2MHz |
| RF Output Power | 5 Watt |
| Receiving Sensitivity | 0.22uV@12.5kHz |
| 0.2uV@20/25KHz Typical | |
| Power Adapter | 12V/3A |
| Transmission Current | 1.4A |
| Antenna Length | 375mm (Foldable Antenna) |
| Size | 100mmx100mmx26mm (Not including Antenna) |
| Weight | N.W.:310g ; G.W.: 590g; |

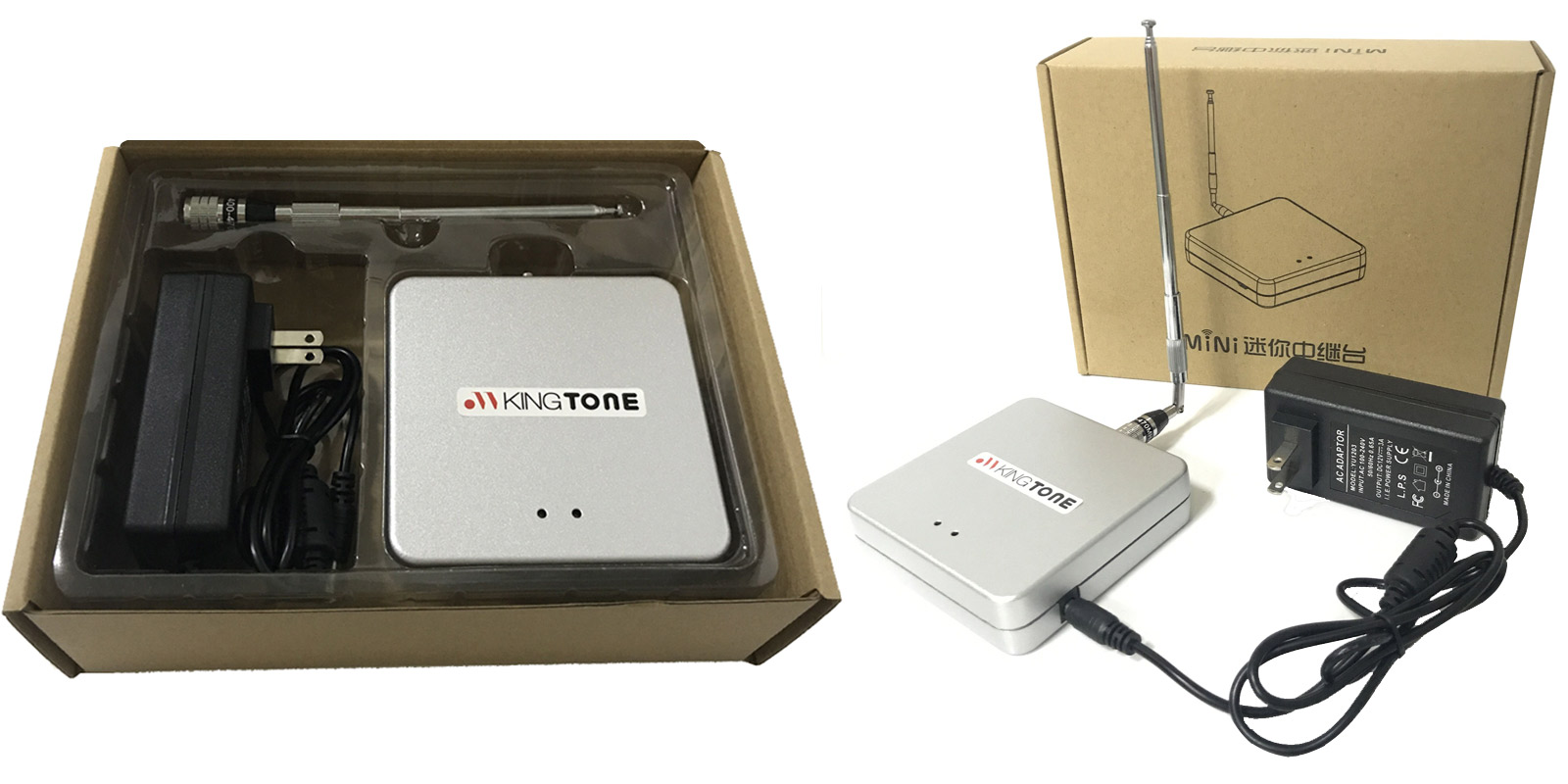

Package Included:
1* Mini Repeater
1* Power Adapter
1* Foldable Antenna
1* User Manual
